Blade Spindle Assembly – M152
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 623763 | Left & Right Spindle Assembly (includes items 3-18) | ||
| 2 | 623780 | Center M1 Blade Spindle Assembly (includes items 3-9 and 11-19) | ||
| 3 | 243331 | Hex Bolt | ||
| 4 | 257041 | Cupped Washer | ||
| 5 | 721167 | Bearing Shield | ||
| 6 | 110081 | 25 MM Regular Seal Ball Bearing | ||
| 7 | 604413 | Aluminum Spindle Housing Assembly | ||
| 8 | 280745 | Zerk Grease Fitting | ||
| 9 | 903643 | Deep Spindle Bearing Spacer | ||
| 10 | 604775 | 5.75 Spindle Shaft Assembly | ||
| 11 | 421200 | Fiber Washer | ||
| 12 | 257061 | Washer | ||
| 13 | 257057 | Hardened Blade Spindle Washer | ||
| 14 | 243583 | Hex Bolt | ||
| 15 | 247141 | Round Head Ribbed Neck Bolt | ||
| 16 | 772061 | Washer | ||
| 17 | 423680 | Deflector Cone | ||
| 18 | 280705 | Relief Plug | ||
| 19 | 604773 | M1 Spindle Shaft Assembly | ||
| 20 | 281582 | Square Key | ||
| 21 | 253035 | Whiz Nut | ||
| 22 | 281583 | Square Key | ||
| 23 | 257106 | Washer |
Blade Spindle Assembly – M161
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 623763 | Left & Right Spindle Assembly (includes items 3-18) | ||
| 2 | 623780 | Center M1 Blade Spindle Assembly (includes items 3-9 and 11-19) | ||
| 3 | 243331 | Hex Bolt | ||
| 4 | 257041 | Cupped Washer | ||
| 5 | 721167 | Bearing Shield | ||
| 6 | 110081 | 25 MM Regular Seal Ball Bearing | ||
| 7 | 604413 | Aluminum Spindle Housing Assembly | ||
| 8 | 280745 | Zerk Grease Fitting | ||
| 9 | 903643 | Deep Spindle Bearing Spacer | ||
| 10 | 604775 | 5.75 Spindle Shaft Assembly | ||
| 11 | 421200 | Fiber Washer | ||
| 12 | 257061 | Washer | ||
| 13 | 257057 | Hardened Blade Spindle Washer | ||
| 14 | 243583 | Hex Bolt | ||
| 15 | 247141 | Round Head Ribbed Neck Bolt | ||
| 16 | 772061 | Washer | ||
| 17 | 423680 | Deflector Cone | ||
| 18 | 280705 | Relief Plug | ||
| 19 | 604773 | M1 Spindle Shaft Assembly | ||
| 20 | 281582 | Square Key | ||
| 21 | 253035 | Whiz Nut | ||
| 22 | 281583 | Square Key | ||
| 23 | 257106 | Washer |
Blade Spindle Assembly – M172
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 623764 | M172 left/right Spindle Assembly (includes items 3-18) | ||
| 2 | 623765 | M172 center Spindle Assembly (includes items 3-8 and 10-19) | ||
| 3 | 243331 | Hex Bolt | ||
| 4 | 257041 | Cupped Washer | ||
| 5 | 110081 | 25MM Regular Double Seal Ball Bearing | ||
| 6 | 604414 | Cast Spindle Housing Assembly | ||
| 7 | 280745 | Zerk Grease Fitting | ||
| 8 | 903643 | Deep Spindle Bearing Spacer | ||
| 9 | 604774 | 98S Spindle Shaft Assembly | ||
| 10 | 421200 | Fiber Washer | ||
| 11 | 257061 | Washer | ||
| 12 | 257057 | Hardened Blade Spindle Washer | ||
| 13 | 243583 | Flanged Hex Bolt Grade 8 | ||
| 14 | 282607 | Spacer | ||
| 15 | 772061 | Washer | ||
| 16 | 423680 | Deflector Cone | ||
| 17 | 721167 | Bearing Shield | ||
| 18 | 257104 | Washer | ||
| 19 | 280705 | Relief Plug | ||
| 20 | 604773 | M1 Spindle Shaft Assembly | ||
| 21 | 281583 | Square Key | ||
| 22 | 253192 | Hex Flange Whiz Bolt | ||
| 23 | 281582 | Square Key |
Console
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 141165 | Zoned Electric Temperature Gauge | ||
| 2 | 141203 | Voltmeter Gauge | ||
| 182007 NLA | Light Bulb | |||
| 3 | 182327 | Oil Indicator Light | ||
| 4 | 182328 | Temperature Indicator Light | ||
| 5 | 182325 | Battery Indicator Light | ||
| 6 | 182326 | Brake Indicator Light | ||
| 7 | 184179 | Rocker Switch | ||
| 8 | 183925 | Push / Pull Switch | ||
| 9 | 183827 | Sealed Key Switch - Kubota | ||
| 23 | 141551 | Snap-in Hour Meter | ||
| 24 | 161117 | Console Decal Pic |
M152 Deck Assembly
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 644159 | M152/07 Deck Weldment | ||
| 2 | 415892 | Sheave | ||
| 3 | 243331 | Hex Bolt | ||
| 4 | 415897 | Sheave | ||
| 5 | 281582 | Square Key | ||
| 6 | 422520 | Nylon Bearing | ||
| 7 | 253067 | Flange Spiral Lock Nut | ||
| 8 | 484230 | Anti-Scalp Center Hub Wheel | ||
| 9 | 942137 | Bearing Tube | ||
| 10 | 247310 | Carriage Bolt | ||
| 11 | 644512 | Roller Lock Pin | ||
| 12 | 426122 | Roller | ||
| 13 | 243365 | Hex Bolt | ||
| 14 | 902284 | Roller Mount Spacer | ||
| 15 | 253043 | Whiz Nut | ||
| 16 | 253192 | Hex Flange Whiz Bolt | ||
| 17 | 253035 | Whiz Nut | ||
| 18 | 424205 | M1 52" Deck Flap | ||
| 19 | 774280 | M1 52-9861 right Deflector Strap | ||
| 20 | 253181 | Bolt | ||
| 21 | 253025 | Whiz Nut | ||
| 22 | 382082 | Belt | ||
| 23 | 824488 | M1 52/61 Idler Arm | ||
| 24 | 121650 | Pedestal Bearing | ||
| 25 | 257041 | Cupped Washer | ||
| 26 | 257040 | Washer | ||
| 27 | 257160 | Washer | ||
| 28 | 393250 | Idler | ||
| 29 | 243575 | Hex Bolt | ||
| 30 | 603725 | 2 Piece Center Roller Assembly | ||
| 31 | 253058 | Whiz Nut | ||
| 32 | 243458 | GR 8 Hex Bolt | ||
| 33 | 820331 | 5 Links M1 Chain | ||
| 34 | 722333 | Right Belt Shield 52/220 | ||
| 35 | 722334 | Left Belt Shield 52/220 | ||
| 36 | 253175 | Hex Whiz Bolt | ||
| 37 | 604676 | M1 300 Radius Arm Assembly | ||
| 38 | 265665 | Rod End | ||
| 39 | 254493 | Nut | ||
| 40 | 724588 | M1/3452 Aux Front Shroud | ||
| 41 | 253176 | Truss Whiz Bolt | ||
| 42 | 254450 | Nut | ||
| 43 | 730391 | Idler Adjustment J Bolt | ||
| 44 | 283848 | Extension Spring | ||
| 45 | 254448 | Speeed Nut | ||
| 46 | 643632 | Vac Housing Pivot Mount | ||
| 47 | 247130 | Carriage Bolt | ||
| 48 | 320236 | 18" Medium Lift Blade | ||
| 320238 | 18" Contour Blade | |||
| 320239 | 18" High Lift Notch Blade | |||
| 320240 | 18" Hi-Low Mulch Blade | |||
| 320241 | 18" Extreme Hi-Lift Blade | |||
| 49 | 645578 | M152 Right Anti-Scalp Roller Mount | ||
| 50 | 645579 | Left Anti-Scalp Roller Mount | ||
| 51 | 254431 | Speed Nut | ||
| 52 | 252821 | 3 Prong Head Deck Stud (Knob) | ||
| 53 | 121756 | Oilite Bearing | ||
| 54 | 604317 | Discharge Flex Shield Assembly | ||
| 55 | 422042 | Discharge Flex Shield | ||
| 56 | 644570 | Discharge Flex Shield Mount | ||
| 57 | 284406 | Torsion Spring | ||
| 58 | 780650 | Discharge Flex Shield Pin | ||
| 59 | 260608 | Cotter Ring | ||
| 60 | 257062 | Washer | ||
| 61 | 644608 | M1 52 right Mulch Plate | ||
| 62 | 644609 | M1 52 left Mulch Plate | ||
| 63 | 644058 | Mulch End Cap | ||
| 64 | 243810 | Hex Bolt | ||
| 65 | 253970 | Lock Nut | ||
| 66 | 253195 | Flanged Hex Whiz Bolt | ||
| 67 | 247135 | Carriage Bolt | ||
| 68 | 420901 | Step Tread | ||
| 69 | 423670 | Idler Arm Stabilizer Cap | ||
| 70 | 729686 | Discharge Deflect Shroud | ||
| 71 | 253177 | Truss Whiz Bolt |
M161 Deck Assembly
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 644160 | M161 / 07 Deck Weldment | ||
| 2 | 415892 | Sheave | ||
| 3 | 243331 | Hex Bolt | ||
| 4 | 415896 | Sheave | ||
| 5 | 281582 | Square Key | ||
| 6 | 254431 | Speed Nut | ||
| 7 | 253067 | Flange Spiral Lock Nut | ||
| 8 | 484230 | Anti-Scalp Center Hub Wheel | ||
| 9 | 942137 | Bearing Tube | ||
| 10 | 247310 | Carriage Bolt | ||
| 11 | 644512 | Roller Lock Pin | ||
| 12 | 426122 | Roller | ||
| 13 | 243365 | Hex Bolt | ||
| 14 | 902284 | Roller Mount Spacer | ||
| 15 | 253043 | Whiz Nut | ||
| 16 | 253192 | Hex Flange Whiz Bolt | ||
| 17 | 253035 | Whiz Nut | ||
| 18 | 424204 | M1 61 Deck Flap | ||
| 19 | 774337 | Deflector Strap | ||
| 20 | 253181 | Bolt | ||
| 21 | 253025 | Whiz Nut | ||
| 22 | 382085 | Belt | ||
| 23 | 824488 | M1 52/61 Idler Arm | ||
| 24 | 121650 | Pedestal Bearing | ||
| 25 | 257041 | Cupped Washer | ||
| 26 | 257040 | Washer | ||
| 27 | 257160 | Washer | ||
| 28 | 393250 | Idler | ||
| 29 | 243575 | Hex Bolt | ||
| 30 | 603725 | 2 Piece Center Roller Assembly | ||
| 31 | 253058 | Whiz Nut | ||
| 32 | 243458 | GR 8 Hex Bolt | ||
| 33 | 820331 | M1 5 Links Chain | ||
| 34 | 722451 | right Belt Shield - Mid 61 | ||
| 35 | 722452 | left Belt Shield - Mid 61 | ||
| 36 | 253175 | Hex Whiz Bolt | ||
| 37 | 604676 | Radius Arm Assembly - M1 300 | ||
| 38 | 265665 | Rod End | ||
| 39 | 254493 | Nut | ||
| 40 | 724589 | M1/3461 Aux Front Shroud | ||
| 41 | 253176 | Truss Whiz Bolt | ||
| 42 | 254450 | Nut | ||
| 43 | 730391 | Idler Adjustment J Bolt | ||
| 44 | 283848 | Extension Spring | ||
| 45 | 254448 | Speeed Nut | ||
| 46 | 643632 | Vac Housing Pivot Mount | ||
| 47 | 247130 | Carriage Bolt | ||
| 48 | 320242 | 21" Medium Lift Blade | ||
| 320244 | 21" Contour Blade | |||
| 320245 | 21" High Lift Notch Blade | |||
| 320246 | 21" Extreme Hi-Lift Blade | |||
| 320247 | 21" Hi-Low Mulch Blade | |||
| 49 | 645576 | M1/3472 Right Anti-Scalp Roller Mount | ||
| 50 | 645579 | Left Anti-Scalp Roller Mount | ||
| 51 | 422520 | Nylon Bearing | ||
| 52 | 252821 | 3 Prong Head Deck Stud (Knob) | ||
| 53 | 121756 | Oilite Bearing | ||
| 54 | 604317 | Discharge Flex Shield Assembly | ||
| 55 | 422042 | Discharge Flex Shield | ||
| 56 | 644570 | Discharge Flex Shield Mount | ||
| 57 | 284406 | Torsion Spring | ||
| 58 | 780650 | Discharge Flex Shield Pin | ||
| 59 | 260608 | Cotter Ring | ||
| 60 | 257062 | Washer | ||
| 61 | 644610 | M1 61 left Mulch Plate | ||
| 62 | 644611 | M1 61 right Mulch Plate | ||
| 63 | 644058 | Mulch End Cap | ||
| 64 | 243810 | Hex Bolt | ||
| 65 | 253970 | Lock Nut | ||
| 66 | 243335 | Hex Bolt | ||
| 257030 | Washer | |||
| 67 | 247135 | Carriage Bolt | ||
| 68 | 420904 | Foot Rest Extension Tread | ||
| 69 | 423670 | Idler Arm Stabilizer Cap | ||
| 70 | 729687 | Discharge Deflect Shroud | ||
| 71 | 253177 | Truss Whiz Bolt |
M172 Deck Assembly
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 644161 | M172/07 Deck Weldment | ||
| 2 | 414745 | Sheave | ||
| 3 | 243331 | Hex Bolt | ||
| 4 | 415894 | Sheave | ||
| 5 | 281582 | Square Key | ||
| 6 | 253192 | Hex Flange Whiz Bolt .312-18 x .75 | ||
| 7 | 253067 | Flange Spiral Lock Nut | ||
| 8 | 484230 | Anti-Scalp Center Hub Wheel | ||
| 9 | 942137 | Bearing Tube | ||
| 10 | 247310 | Carriage Bolt | ||
| 11 | 644512 | Roller Lock Pin | ||
| 12 | 603725 | Center 2-Piece Roller Assembly | ||
| 13 | 243365 | Hex Bolt | ||
| 14 | 253175 | Hex Whiz Bolt | ||
| 15 | 253043 | Whiz Nut | ||
| 16 | 252821 | 3 Prong Head Deck Stud (Knob) | ||
| 17 | 253035 | Whiz Nut | ||
| 18 | 424206 | M1 72 Deck Flap | ||
| 19 | 774337 | Deflector Strap | ||
| 20 | 253181 | Bolt | ||
| 21 | 253025 | Whiz Nut | ||
| 22 | 382098 | Belt | ||
| 23 | 824494 | Idler Arm 72 Deep F/A | ||
| 24 | 121650 | Pedestal Bearing | ||
| 25 | 257041 | Cupped Washer | ||
| 26 | 257040 | Washer | ||
| 27 | 257160 | Washer | ||
| 28 | 393250 | Idler | ||
| 29 | 243575 | Hex Bolt | ||
| 30 | 260608 | Cotter Ring | ||
| 31 | 253058 | Whiz Nut | ||
| 32 | 243458 | Hex Bolt GR 8 | ||
| 33 | 820331 | Chain - 5 Links M1 | ||
| 34 | 723330 | M1 72 right Belt Shield | ||
| 35 | 723331 | M1 72 left Belt Shield | ||
| 36 | 755071 | Roller Mount M1 72 | ||
| 37 | 604676 | Radius Arm Assembly - M1 300 | ||
| 38 | 265665 | Rod End | ||
| 39 | 254493 | Nut | ||
| 40 | 724590 | 72 Deck Aux Front Shroud | ||
| 41 | 253176 | Truss Whiz Bolt | ||
| 42 | 254450 | Nut | ||
| 43 | 730391 | Idler Adjustment J Bolt | ||
| 44 | 283848 | Extension Spring | ||
| 45 | 254448 | Speeed Nut | ||
| 46 | 643632 | Pivot Mount for Vac Housing | ||
| 47 | 247130 | Carriage Bolt | ||
| 48 | 320250 | 25" Medium Lift Blade | ||
| 320252 | 25" Contour Blade | |||
| 320253 | 25" High Lift Notch Blade | |||
| 320254 | 25" Extreme Hi-Lift Blade | |||
| 320255 | 25" Hi-Low Mulch Blade | |||
| 49 | 645575 | Right Anti-Scalp Roller Mount | ||
| 50 | 645579 | Left Anti-Scalp Roller Mount | ||
| 51 | 254431 | Speed Nut | ||
| 52 | 247253 | Carriage Bolt | ||
| 53 | 422520 | Nylon Bearing | ||
| 54 | 121756 | Oilite Bearing | ||
| 55 | 257062 | Washer | ||
| 56 | 604317 | Discharge Flex Shield Assembly | ||
| 57 | 422042 | Discharge Flex Shield | ||
| 58 | 644570 | Discharge Flex Shield Mount | ||
| 59 | 284406 | Torsion Spring | ||
| 60 | 780650 | Discharge Flex Shield Pin | ||
| 61 | 644612 | right Mulch Plate | ||
| 62 | 644613 | left Mulch Plate | ||
| 63 | 644058 | Mulch End Cap | ||
| 64 | 243810 | Hex Bolt | ||
| 65 | 253970 | Lock Nut | ||
| 66 | 423670 | Idler Arm Stabilizer Cap | ||
| 67 | 247135 | Carriage Bolt | ||
| 68 | 420904 | Foot Rest Extension Tread | ||
| 69 | 729703 | Dishcarge Deflect Shroud | ||
| 70 | 253177 | Truss Whiz Bolt |
Deck Carrier Assembly M152
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 645150 | Extended Carrier | ||
| 162187 | Cutting Height Decal | |||
| 2 | 121766 | Oilite Bearing | ||
| 3 | 261405 | Oilite Bearing | ||
| 4 | 257051 | Washer | ||
| 5 | 260612 | Cotter Ring | ||
| 6 | 243565 | Hex Bolt | ||
| 243565 | Flanged Spiral Lock Nut | |||
| 7 | 423696 | M1 Height Adjustment Spacer | ||
| 8 | 644778 | M1 Height Adjustment Tube | ||
| 9 | 644305 | Latch Tube Guide | ||
| 10 | 775104 | Deck Latch | ||
| 11 | 243330 | Hex Bolt | ||
| 12 | 253890 | Lock Nut | ||
| 13 | 821516 | Nylon Washer | ||
| 14 | 243560 | Hex Bolt | ||
| 15 | 253470 | Nylon Insert Nut | ||
| 16 | 730434 | Height Adjustment Deck Pin | ||
| 17 | 424052 | Rubber Bumper | ||
| 18 | 253035 | Whiz Nut | ||
| 19 | 243205 | Hex Bolt | ||
| 20 | 253215 | Flange Bolt | ||
| 21 | 423643 | M1 Bearing Block | ||
| 22 | 774064 | Lift Bearing Plate | ||
| 23 | 644481 | M1 Deck Adjustment Lift Lever | ||
| 24 | 644707 | M1 Right Rear Deck Rocker | ||
| 25 | 644708 | M1 Left Rear Deck Rocker | ||
| 26 | 263529 | External Retainer | ||
| 27 | 326100 | Rod And Spring Assembly | ||
| 28 | 882035 | Spring Rod Shaft Mount | ||
| 29 | 283392 | Compression Spring | ||
| 30 | 257080 | Washer | ||
| 31 | 254490 | Nut | ||
| 32 | 820331 | M1 Chain - 5 Links | ||
| 33 | 243458 | Hex Bolt GR 8 | ||
| 34 | 253058 | Whiz Nut | ||
| 35 | 254493 | Nut | ||
| 36 | 123522 | Bearing Cup | ||
| 37 | 122522 | Taper Bearing | ||
| 38 | 257320 | Spring Washer | ||
| 39 | 254505 | Jam Nylon Top Lock Nut | ||
| 40 | 481434 | Domed Dust Cap | ||
| 41 | 125855 | Seal | ||
| 42 | 282615 | Spacer | ||
| 43 | 645221 | Fork Tailwheel Tapered Bearing | ||
| 44 | 247725 | Carriage Bolt | ||
| 45 | 253970 | Lock Nut | ||
| 46 | 902422 | Axle Spacer | ||
| 47 | 603975 | Rear Wheel Assembly with Bearings 13x6.5x6 | ||
| 482355 | Ribbed Tire 13 x 6.50 x 6 | |||
| 483306 | Wheel without Tire / without Bearings 6 x 4.5 | |||
| 48 | 902429 | Rear Axle Center Spacer | ||
| 49 | 120048 | DP Wheel Ball Bearing | ||
| 50 | 732586 | M1 Deck Adjusting Strap | ||
| 51 | 644467 | M1 Deck Adjustment Foot Pedal | ||
| 52 | 253203 | Flanged Whiz Bolt | ||
| 53 | 253043 | Whiz Nut | ||
| 54 | 257092 | 18 Guage Bushing Washer | ||
| 55 | 643677 | Suspension Pivot Fork Yoke | ||
| 56 | 121734 | Oilite Bearing | ||
| 57 | 643313 | Suspension Fork Yoke | ||
| 58 | 257442 | Lock Washer | ||
| 59 | 887114 | Suspension Fork Pivot Bolt | ||
| 60 | 257063 | Washer | ||
| 61 | 243600 | Hex Bolt | ||
| 62 | 283326 | Compression Spring | ||
| 63 | 283389 | Compression Spring | ||
| 64 | 257062 | Washer | ||
| 65 | 253930 | Lock Nut | ||
| 66 | 254461 | Nut |
Deck Carrier Assembly M161
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 645153 | M161 Extension Carrier | ||
| 162187 | Cutting Height Decal | |||
| 2 | 422640 | Poly Bearing | ||
| 3 | 261405 | Clevis Pin | ||
| 4 | 257051 | Washer | ||
| 5 | 260612 | Cotter Ring | ||
| 6 | 253035 | Whiz Nut | ||
| 7 | 423696 | M1 Height Adjustment Spacer | ||
| 8 | 644778 | M1 Height Adjustment Tube | ||
| 9 | 644305 | Latch Tube Guide | ||
| 10 | 775104 | Deck Latch | ||
| 11 | 243330 | Hex Bolt | ||
| 12 | 253890 | Lock Nut | ||
| 13 | 821516 | Nylon Washer | ||
| 14 | 243560 | Hex Bolt | ||
| 15 | 253470 | Nylon Insert Nut | ||
| 16 | 730434 | Height Adjustment Deck Pin | ||
| 17 | 424052 | Rubber Bumper | ||
| 18 | 243205 | Hex Bolt | ||
| 19 | 243565 | Hex Bolt | ||
| 253067 | Flanged Spiral Lock Nut | |||
| 20 | 253215 | Flange Bolt | ||
| 21 | 423643 | M1 Bearing Block | ||
| 22 | 774064 | Lift Bearing Plate | ||
| 23 | 644481 | M1 Deck Adjustment Lift Lever | ||
| 24 | 644707 | M1 right Rear Deck Rocker | ||
| 25 | 644708 | M1 left Rear Deck Rocker | ||
| 26 | 263529 | External Retainer | ||
| 27 | 326105 | M161 Rod And Spring Assembly | ||
| 28 | 882035 | Spring Rod Mount Shaft | ||
| 29 | 283395 | Compression Spring | ||
| 30 | 257080 | Washer | ||
| 31 | 254490 | Nut | ||
| 32 | 820331 | M1 Chain - 5 Links | ||
| 33 | 243458 | Hex Bolt GR 8 | ||
| 34 | 253058 | Whiz Nut | ||
| 35 | 254493 | Nut | ||
| 36 | 123522 | Bearing Cup | ||
| 37 | 122522 | Taper Bearing | ||
| 38 | 257320 | Spring Washer | ||
| 39 | 254505 | Jam Nylon Top Lock Nut | ||
| 40 | 481434 | Domed Dust Cap | ||
| 41 | 125855 | Seal | ||
| 42 | 282615 | Spacer | ||
| 43 | 645221 | Tailwheel Fork Tapered Bearing | ||
| 44 | 247725 | Carriage Bolt | ||
| 45 | 253970 | Lock Nut | ||
| 46 | 902422 | Axle Spacer | ||
| 47 | 603975 | Rear Wheel Assembly with Bearings 13x6.5x6 | ||
| 482355 | Ribbed Tire 13 x 6.50 x 6 | |||
| 483306 | Wheel without Tire / without Bearings 6 x 4.5 | |||
| 48 | 423750 | Axle Spacer | ||
| 49 | 120048 | DP Wheel Ball Bearing | ||
| 50 | 732586 | M1 Deck Adjusting Strap | ||
| 51 | 644467 | M1 Carrier Adjustment Foot Pedal | ||
| 52 | 253203 | Flanged Whiz Bolt | ||
| 53 | 253043 | Whiz Nut | ||
| 54 | 257092 | 18 Guage Bushing Washer | ||
| 55 | 643677 | Suspension Yoke Pivot Fork | ||
| 56 | 121734 | Oilite Bearing | ||
| 57 | 643313 | Fork Yoke - Suspension | ||
| 58 | 257442 | Lock Washer | ||
| 59 | 887114 | Pivot Bolt - Suspension Fork | ||
| 60 | 257063 | Washer | ||
| 61 | 243600 | Hex Bolt | ||
| 62 | 283326 | Compression Spring | ||
| 63 | 283389 | Compression Spring | ||
| 64 | 257062 | Washer | ||
| 65 | 253930 | Lock Nut | ||
| 66 | 254461 | Nut |
Deck Carrier Assembly M172
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 644135 | Carrier - M172 | ||
| 162187 | Cutting Height Decal | |||
| 2 | 253035 | Whiz Nut | ||
| 3 | 644778 | M1 Height Adjustment Tube | ||
| 4 | 644305 | Latch Tube Guide | ||
| 5 | 775104 | Deck Latch | ||
| 6 | 243330 | Hex Bolt | ||
| 7 | 253890 | Lock Nut | ||
| 8 | 821516 | Nylon Washer | ||
| 9 | 243560 | Hex Bolt | ||
| 10 | 253470 | Nylon Insert Nut | ||
| 11 | 730434 | Height Adjustment Deck Pin | ||
| 12 | 424052 | Rubber Bumper | ||
| 13 | 422640 | Poly Bearing | ||
| 14 | 243565 | Hex Bolt | ||
| 253067 | Flange Spiral Lock Nut | |||
| 15 | 253215 | Flange Bolt | ||
| 16 | 423643 | M1 Bearing Block | ||
| 17 | 774064 | Lift Bearing Plate | ||
| 18 | 644482 | M1 Deck Adjustment Lift Lever | ||
| 19 | 644707 | M1 Right Rear Deck Rocker | ||
| 20 | 644708 | M1 Left Rear Deck Rocker | ||
| 21 | 263529 | External Retainer | ||
| 22 | 326108 | M172 Rod And Spring Assembly | ||
| 23 | 882035 | Spring Rod Mount Shaft | ||
| 24 | 283395 | Compression Spring | ||
| 25 | 257080 | Washer | ||
| 26 | 254490 | Nut | ||
| 27 | 820331 | M1 Chain - 5 Links | ||
| 28 | 243458 | Hex Bolt GR 8 | ||
| 29 | 253058 | Whiz Nut | ||
| 30 | 254493 | Nut | ||
| 31 | 123522 | Bearing Cup | ||
| 32 | 122522 | Taper Bearing | ||
| 33 | 257320 | Spring Washer | ||
| 34 | 254505 | Jam Nylon Top Lock Nut | ||
| 35 | 481434 | Domed Dust Cap | ||
| 36 | 125855 | Seal | ||
| 37 | 282615 | Spacer | ||
| 38 | 645221 | Tailwheel Fork Tapered Bearing | ||
| 39 | 247725 | Carriage Bolt | ||
| 40 | 253970 | Lock Nut | ||
| 41 | 902422 | Axle Spacer | ||
| 42 | 603975 | Rear Wheel Assembly with Bearings 13x6.5x6 | ||
| 482355 | Ribbed Tire 13 x 6.50 x 6 | |||
| 483306 | Wheel without Tire / without Bearings 6 x 4.5 | |||
| 43 | 423750 | Axle Spacer | ||
| 44 | 120048 | DP Wheel Ball Bearing | ||
| 45 | 732586 | M1 Deck Adjusting Strap | ||
| 46 | 243205 | Hex Bolt | ||
| 47 | 423696 | M1 Height Adjustment Spacer | ||
| 48 | 261405 | Clevis Pin | ||
| 49 | 257051 | Washer | ||
| 50 | 260612 | Cotter Ring | ||
| 51 | 644467 | M1 Carrier Adjust Foot Pedal | ||
| 52 | 253203 | Flanged Whiz Bolt | ||
| 53 | 253043 | Whiz Nut | ||
| 54 | 257092 | 18 Guage Bushing Washer | ||
| 55 | 643677 | Suspension Fork Yoke Pivot | ||
| 56 | 121734 | Oilite Bearing | ||
| 57 | 643313 | Suspension Fork Yoke | ||
| 58 | 257442 | Lock Washer | ||
| 59 | 887114 | Suspension Fork Pivot Bolt | ||
| 60 | 257063 | Washer | ||
| 61 | 243600 | Hex Bolt | ||
| 62 | 283326 | Compression Spring | ||
| 63 | 283389 | Compression Spring | ||
| 64 | 257062 | Washer | ||
| 65 | 253930 | Lock Nut | ||
| 66 | 254461 | Nut |
Drive Assembly
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 644619 | Pump Plate | ||
| 2 | 415884 | Sheave | ||
| 3 | 415898 | Sheave | ||
| 4 | 824572 | Idler Arm-300/400 Pumps | ||
| 5 | 121651 | Pedestal Bearing | ||
| 6 | 243365 | Hex Bolt | ||
| 7 | 257040 | Washer | ||
| 8 | 253043 | Whiz Nut | ||
| 9 | 257412 | Lock Washer | ||
| 10 | 253890 | Lock Nut | ||
| 11 | 393195 | Idler Pulley | ||
| 12 | 257062 | Washer | ||
| 13 | 243601 | Hex Bolt | ||
| 14 | 257432 | Lock Washer | ||
| 15 | 254470 | Nut | ||
| 16 | 422558 | Nylon Bearing | ||
| 17 | 253930 | Lock Nut | ||
| 18 | 243575 | Hex Bolt | ||
| 19 | 253061 | Whiz Nut | ||
| 20 | 283820 | Extension Spring with Swivel | ||
| 21 | 253203 | Flange Whiz Bolt | ||
| 22 | 382035 | Belt | ||
| 23 | 388740 | Electric Clutch | ||
| 24 | 281582 | Square Key | ||
| 25 | 755046 | Anti Rotation Bracket | ||
| 26 | 422088 | Clutch Bracket Cover | ||
| 27 | 283848 | Extension Spring | ||
| 28 | 730391 | Idler Adjustment J Bolt | ||
| 29 | 254450 | Nut | ||
| 30 | 243340 | Hex Bolt | ||
| 31 | 257319 | Spring Washer | ||
| 32 | 243349 | Hex Bolt | ||
| 33 | 774020 | Washer | ||
| 34 | 393376 | Idler | ||
| 35 | 243355 | Hex Bolt | ||
| 36 | 254431 | Speed Nut | ||
| 37 | 393390 | Idler | ||
| 38 | 121756 | Oilite Bearing | ||
| 39 | 755155 | M1 Fixed Idler Belt Guide | ||
| 40 | 382111 | Belt | ||
| 382117 | Belt | |||
| 41 | 732520 | M1 Idler Spring Bracket | ||
| 42 | 253066 | Whiz Nut | ||
| 43 | 645722 | Belt Shield | ||
| 44 | 422090 | Rear Belt Shield Isolator | ||
| 45 | 253175 | Hex Whiz Bolt | ||
| 46 | 824476 | HD Mule Drive Idler Arm Assembly | ||
| 47 | 110080 | 25MM 2 Metal Seal Ball Bearing | ||
| 48 | 257104 | Washer | ||
| 49 | 885015 | Heavy Duty Pedestal Bearing | ||
| 50 | 253025 | Whiz Nut | ||
| 51 | 754003 | Fixed Idler Tabbed Spacer | ||
| 52 | 784057 | Guide Tube | ||
| 53 | 243038 | Hex Bolt | ||
| 1 | 644619 | Pump Plate | ||
| 2 | 391462 | Hydro Pump - left | ||
| 3 | 391463 | Hydro Pump - right | ||
| 4 | 784094 | 325D/329 Steering Link Tube | ||
| 5 | 265617 | Ball Joint, Righthand Thread Male | ||
| 6 | 254441 | Nut | ||
| 7 | 265618 | Ball Joint Lefthand Thread Male | ||
| 8 | 254444 | Nut | ||
| 9 | 281562 | Rectangle Key | ||
| 10 | 725338 | Right Pump Control Arm | ||
| 11 | 265680 | Ball Stud | ||
| 12 | 253035 | Whiz Nut | ||
| 13 | 257020 | Washer | ||
| 14 | 603726 | Eccentric Roller Assembly | ||
| 15 | 257410 | External Star Washer | ||
| 16 | 254450 | Nut | ||
| 17 | 253182 | Hex Whiz Bolt | ||
| 18 | 253025 | Whiz Nut | ||
| 19 | 754128 | M1 right Neutral Return Mount | ||
| 20 | 754129 | M1 left Neutral Return Mount | ||
| 21 | 729136 | right Neutral Return Front Arm | ||
| 22 | 729137 | left Neutral Return Front Arm | ||
| 23 | 729138 | right Neutral Return Arm | ||
| 24 | 729139 | left Neutral Return Arm | ||
| 25 | 283823 | Extension Spring | ||
| 26 | 822304 | Neutral Return Pivot Bearing | ||
| 27 | 257030 | Washer | ||
| 28 | 243335 | Hex Bolt | ||
| 29 | 253890 | Lock Nut | ||
| 30 | 243035 | Hex Bolt | ||
| 31 | 253043 | Whiz Nut | ||
| 32 | 253038 | Whiz Nut | ||
| 33 | 253192 | Hex Flange Whiz Bolt | ||
| 34 | 729501 | 322 Series right Rein Plate | ||
| 35 | 729502 | 322 Series left Rein Plate | ||
| 36 | 285031 | Damper | ||
| 37 | 885123 | 10A Fan Mount Hub | ||
| 38 | 320857 | 7" Clockwise Nylon Fan | ||
| 39 | 774020 | Washer | ||
| 40 | 254452 | Nut | ||
| 41 | 606529 | 325D Steering Linkage Kit |
Engine Assembly
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 100172 | Kubota Gas Engine | ||
| 2 | 100800 | Kubota Oil Filter | ||
| 3 | 101236 | WG972 2011 Kubota Muffler | ||
| 101040 | Kubota Flange Exhaust Gasket | |||
| 4 | 100207 | Nelson 90 degree Air Cleaner | ||
| 100936 | Outer HD Air Filter | |||
| 100937 | Inner HD Air Filter | |||
| 5 | 424535 | Air Intake Hose | ||
| 6 | 424520 | Breather Inlet Hose | ||
| 7 | 644286 | 902D right Engine Mount | ||
| 8 | 644287 | 902D left Engine Mount | ||
| 9 | 424078 | Vibration Isolator | ||
| 10 | 253043 | Whiz Nut | ||
| 11 | 824637 | Clutch Stub Shaft | ||
| 12 | 270075 | M8 Socket Head Screw | ||
| 13 | 101510 | Electric Fuel Pump | ||
| 14 | 101005 | Kubota Fuel PreFilter | ||
| 15 | 101612 | Kubota Radiator | ||
| 16 | 101080 | Radiator Isolator Mount Bushing | ||
| 17 | 101058 | Upper Radiator Hose | ||
| 18 | 101059 | Lower Radiator Hose | ||
| 19 | 729327 | Radiator Channel Clamp | ||
| 20 | 822518 | Hood Bulb Seal | ||
| 21 | 644438 | 725d/932 Engine Hood W/A | ||
| 22 | 822639 | Front Hood Trim | ||
| 23 | 422508 | Step Bushing | ||
| 24 | 822513 | Air Cleaner Seal Trim | ||
| 25 | 644854 | Hood Support | ||
| 26 | 722942 | Hood Box Panel With Converter | ||
| 27 | 901324 | Hood Hinge Spacer | ||
| 28 | 257063 | Washer | ||
| 29 | 253175 | Hex Whiz Bolt | ||
| 30 | 253173 | Hex Whiz Bolt | ||
| 31 | 722920 | 725DT6 Right Hood Side | ||
| 32 | 280305 | Screw Type Hose Clamp | ||
| 33 | 644066 | Air Intake Box Mount | ||
| 34 | 644059 | Air Intake Box | ||
| 35 | 762521 | 725DT6 Left Hood Side | ||
| 36 | 645270 | Rear Hood Grill | ||
| 37 | 421980 | Expansion Tank - Water | ||
| 38 | 421990 | Rservoir Cap With Gasket | ||
| 39 | 821748 | Clear Vent Hose | ||
| 40 | 821749 | Hose | ||
| 41 | 280260 | Spring Hose Clamp | ||
| 42 | 644658 | Lower 902 Radiator Mount | ||
| 43 | 604382 | Grille with Guard Assembly | ||
| 44 | 422090 | Rear Belt Isolator Shield | ||
| 45 | 822636 | Radiator Grille Trim | ||
| 46 | 604805 | Swell Latch Assembly | ||
| 47 | 280303 | Screw Type Hose Clamp | ||
| 48 | 253192 | Hex Flange Whiz Bolt | ||
| 49 | 253035 | Whiz Nut | ||
| 50 | 253025 | Whiz Nut | ||
| 51 | 729782 | Muffler Shield | ||
| 52 | 821726 | Fuel Hose | ||
| 53 | 821716 | 928D Fuel Line Hose | ||
| 54 | 280261 | Spring Hose Clamp | ||
| 55 | 271121 | Hex Bolt | ||
| 56 | 754224 | Coil Mount | ||
| 57 | 141012 | Filter Minder Gauge with Mount | ||
| 58 | 363815 | O-Ring Filter Fitting | ||
| 59 | 363828 | Street Ell Fitting | ||
| 60 | 942418 | 942418 | ||
| 61 | 101356 | Exhaust Clamp | ||
| 62 | 253181 | Hex Bolt | ||
| 63 | 822632 | Trim | ||
| 64 | 721006 | Fan Shield | ||
| 65 | 253180 | Bolt | ||
| 66 | 253176 | Truss W | ||
| 67 | 253440 | Nut With Nylon Insert | ||
| 68 | 822507 | Lower Radiator Seal |
Reservoir And Hose Assembly
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 254470 | Wheel Motor with Hub | ||
| 2 | 243597 | Nut | ||
| 3 | 645802 | Diamond Head Bolt | ||
| 4 | 645803 | 300/400 Right Tank Rail | ||
| 5 | 253192 | 300/400 Left Tank Rail | ||
| 6 | 253035 | Hex Flange Whiz Bolt .312-18 x .75 | ||
| 7 | 603606 | Whiz Nut | ||
| 8 | 603606 | M1 300/400 Oil Reservoir Assembly | ||
| 101875 | Grommet | |||
| 101880 | Grommet | |||
| 360058 | Straight Fitting | |||
| 363638 | 90 degree Fitting | |||
| 9 | 732557 | Oil Tank Strap | ||
| 10 | 100728 | M1 Oil Reservoir Dipstick | ||
| 11 | 363826 | Straight Barbed Fitting | ||
| 12 | 360069 | Adapter Fitting | ||
| 126529 | O Ring | |||
| 126537 | O Ring | |||
| 13 | 644619 | Pump Plate | ||
| 14 | 391462 | Hydro Pump - left | ||
| 15 | 391463 | Hydro Pump - right | ||
| 16 | 732882 | Pump Plate Rein Strap | ||
| 17 | 360046 | Adapter Fitting | ||
| 126527 | O Ring | |||
| 126535 | O Ring | |||
| 18 | 363832 | Steel O-Ring Boss Fitting | ||
| 19 | 243335 | Hex Bolt | ||
| 20 | 821724 | Clear Vent Hose | ||
| 21 | 360056 | Adapter | ||
| 22 | 257432 | Lock Washer | ||
| 23 | 424377 | Hose Assembly | ||
| 24 | 424321 | Hose Assembly | ||
| 25 | 366553 | In-Line Strainer | ||
| 26 | 821795 | Hydraulic Hose | ||
| 27 | 280266 | Spring Hose Clamp | ||
| 28 | 424317 | Return Hose Assembly | ||
| 29 | 821787 | Hydraulic Hose | ||
| 30 | 280264 | Spring Hose Clamp | ||
| 31 | 101024 | M1 Series Filter Base | ||
| 32 | 253173 | Hex Whiz Bolt | ||
| 33 | 100855 | High-Efficiency Transaxle Oil Filter |
Seat And ROPS Assembly
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 321518 | Seat Cushion - Cordura | ||
| 2 | 321519 | Back Cushion - Cordura | ||
| 3 | 321523 | Contoured Armrest - Cordura | ||
| 4 | 723433 | Extended Armrest Seat Side Member - right | ||
| 5 | 723434 | Extended Armrest Seat Side Member - left | ||
| 6 | 822630 | Seat Edge Trim | ||
| 7 | 643932 | 300S Dual Latch Seat Platform | ||
| 8 | 253193 | Hex Flange Whiz Bolt | ||
| 9 | 722884 | Raisded Backrest Seat Reinforcement | ||
| 10 | 253191 | Hex Flange Whiz Bolt | ||
| 11 | 183871 | Twist-in Seat Switch | ||
| 12 | 424095 | Seat Isolator | ||
| 13 | 644618 | Seat Hinge Pin | ||
| 14 | 253192 | Hex Flange Whiz Bolt | ||
| 15 | 253035 | Whiz Nut | ||
| 16 | 754240 | Seat Dual Latch | ||
| 17 | 754226 | Dual Latch Mount Bracket | ||
| 18 | 730230 | Seat Latch Pivot Pin | ||
| 19 | 284408 | Torsion Spring | ||
| 20 | 260606 | Cotter Ring | ||
| 21 | 253043 | Whiz Nut | ||
| 22 | 253176 | Truss Hex Whiz Bolt | ||
| 23 | 253025 | Whiz Nut | ||
| 24 | 324200 | Non-retractable Seat Belt | ||
| 25 | 243551 | Hex Bolt | ||
| 26 | 257063 | Washer | ||
| 27 | 257062 | Washer | ||
| 28 | 253470 | Nylon Insert Nut | ||
| 29 | 324104 | M1 ROPS (Roll-Over Protection Structure) | ||
| 30 | 643862 | ROPS Mount - right | ||
| 31 | 643863 | ROPS Mount - left | ||
| 32 | 243600 | Hex Bolt | ||
| 33 | 253930 | Lock Nut | ||
| 34 | 243570 | Hex Bolt | ||
| 35 | 243565 | Hex Bolt | ||
| 36 | 253067 | Flange Spiral Lock Nut | ||
| 37 | 283516 | Compression Spring | ||
| 38 | 422127 | Seat Spring Cap | ||
| 39 | 253203 | Flange Whiz Bolt |
Steering Assembly
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 604778 | Steering Lever Assembly - Wide STD | ||
| 2 | 643926 | Adjustable Steering Lever Mount | ||
| 3 | 253195 | Hex Flange Whiz Bolt | ||
| 4 | 253450 | Nylon Insert Nut | ||
| 5 | 422179 | Handle Grip | ||
| 6 | 422095 | Vinyl Cap .75 ID | ||
| 7 | 604713 | Right Steering Pivot with Stop & Bearings | ||
| 8 | 604714 | Left Steering Pivot with Stop & Bearings | ||
| 9 | 422556 | Sleeve Bearing with Flange | ||
| 10 | 422557 | Sleeve Bearing | ||
| 11 | 243197 | Hex Bolt | ||
| 12 | 257063 | Washer | ||
| 13 | 253470 | Nylon Insert Nut | ||
| 14 | 283324 | Compression Spring | ||
| 15 | 257019 | Flat Washer | ||
| 16 | 254438 | Adjustable Lever Nut |
Tractor Assembly
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 644296 | 300M1 Front Port Lower Frame | ||
| 2 | 644434 | M1 300/400 Upper Frame | ||
| 3 | 257037 | Step Bushing | ||
| 4 | 774020 | Washer | ||
| 5 | 243220 | Hex Bolt | ||
| 6 | 253450 | Nylon Insert Nut | ||
| 7 | 693120 | Console With Decal | ||
| 8 | 645052 | M1 Console Mount | ||
| 9 | 645802 | 300/400 Right Tank Rail | ||
| 10 | 645803 | 300/400 Left Tank Rail | ||
| 11 | 253192 | Hex Flange Whiz Bolt | ||
| 12 | 253035 | Whiz Nut | ||
| 13 | 723042 | 300/400 Front Tank Bracket | ||
| 14 | 253025 | Whiz Nut | ||
| 15 | 253176 | Truss Whiz Bolt | ||
| 16 | 283516 | Compression Spring | ||
| 17 | 253203 | Whiz Flange Bolt | ||
| 18 | 253043 | Whiz Nut .375-16 | ||
| 19 | 422127 | Seat Spring Cap | ||
| 20 | 644108 | Battery Box with Strap | ||
| 21 | 427275 | Battery Tray Pad | ||
| 22 | 604785 | Battery Hold-down Strap | ||
| 23 | 605799 | M1 Gas Tank Assembly | ||
| 24 | 141142 | In Tank Fuel Guage | ||
| 424275 | Grommet | |||
| 25 | 363929 | Fuel Tube | ||
| 26 | 101875 | Fuel Tube Bushing | ||
| 27 | 100216 | 2011 Fuel Tank Valve | ||
| 28 | 821763 | Fuel Vapor Hose | ||
| 29 | 693224 | 300 Right Fender With Decals | ||
| 30 | 693225 | 300 Left Fender With Decals | ||
| 31 | 822632 | Fender Edge Trim | ||
| 32 | 422079 | Plug for Worklamp Hole | ||
| 33 | 254431 | Speed Nut | ||
| 34 | 253175 | Hex Whiz Bolt | ||
| 35 | 422040 | Tool Box | ||
| 36 | 150225 | Cup Holder | ||
| 37 | 259030 | Cap Screw | ||
| 38 | 254436 | Nut | ||
| 39 | 248565 | Lug Bolt | ||
| 40 | 483965 | Wheel & Tire 24 x 12 x 12 | ||
| 482485 | Turf Tire 23 x 10.5 x 12 | |||
| 482486 | Turf Tire 24 x 12 x 12 | |||
| 482487 | Bar Tread Tire Only 24 x 12 x 12 | |||
| 483440 | Wheel Only 12 x 8.5 x 4.25 (for 61" & 72" Decks) | |||
| 483445 | Wheel Only 12 x 8.5 x 5.750 (for 52" Decks) | |||
| 483960 | Wheel & Tire 23 x 10.5 x 12 | |||
| 483968 | 12" Wheel & Bar Tread Tire (right) | |||
| 483969 | 12" Wheel & Bar Tread Tire (left) | |||
| 41 | 783277 | Belt Guard Strap | ||
| 42 | 644256 | M1 On-Frame Foot Rest | ||
| 43 | 645005 | M1 Deck Belt - Belt Guide | ||
| 44 | 424095 | Seat Isolator | ||
| 45 | 644618 | Seat Hinge Pin | ||
| 46 | 605825 | Throttle Assembly | ||
| 323660 | Throttle Control Cable | |||
| 722009 | Throttle Lever Stop | |||
| 722736 | Heavy Duty Throttle Lever Stop | |||
| 47 | 422150 | Handle Grip | ||
| 48 | 722949 | M1 Fuel Tank Shield | ||
| 49 | 821718 | 428D Fuel Line Hose | ||
| 50 | 280261 | Spring Hose Clamp | ||
| 51 | 142232 | Mechanical Choke | ||
| 52 | 101005 | Kubota Fuel Pre-Filter | ||
| 53 | 723396 | 322 Right Hydro Debris Shield | ||
| 54 | 723397 | 322 Left Hydro Debris Shield | ||
| 55 | 257038 | Step Bushing | ||
| 56 | 751036 | Console Frame | ||
| 57 | 254432 | Plastic Retainer Nut | ||
| 58 | 253180 | Bolt | ||
| 59 | 644887 | 300/400 Fuel Filler | ||
| 60 | 606360 | Sealed Tether Fuel Cap Kit | ||
| 61 | 422027 | Fuel Tank Filler Hose | ||
| 62 | 280305 | Screw Type Hose Clamp | ||
| 63 | 253173 | Hex Whiz Bolt | ||
| 64 | 773103 | Relay Mount | ||
| 65 | 424216 | Grommet | ||
| 66 | 645572 | Bumper | ||
| 67 | 246975 | Plastic Push Stud .250 | ||
| 66 | 604281 | 329 Decal Set |

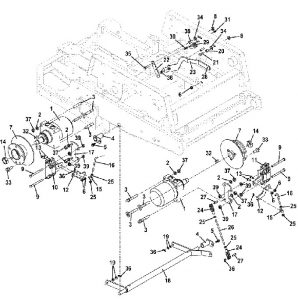

Wheel Motor And Brake Assembly
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 603602 | Wheel Motor with Hub | ||
| 2 | 257432 | Lock Washer | ||
| 3 | 243597 | Diamond Head Bolt | ||
| 4 | 644077 | Bolt-In Brake Tube | ||
| 5 | 253192 | Hex Flange Whiz Bolt | ||
| 6 | 253035 | Whiz Nut | ||
| 7 | 604436 | Hub and Rotor Assembly | ||
| 8 | 253043 | Whiz Nut | ||
| 9 | 243386 | Hex Bolt | ||
| 10 | 481141 | Brake Assembly Counter Clock Wise 700,900,M1 | ||
| 481160 | Brake Pad Kit | |||
| 11 | 481140 | Brake Assembly - Clock Wise 700,900,M1 | ||
| 481160 | Brake Pad Kit | |||
| 12 | 776126 | Brake Caliper Arm 200-300 | ||
| 13 | 243195 | Hex Bolt | ||
| 14 | 254522 | Nut | ||
| 15 | 880926 | Brake Linkage Pin | ||
| 16 | 730158 | M1 Brake Linkage Rod | ||
| 17 | 776123 | Brake Mount 930D2/932G2 M1 | ||
| 18 | 644173 | 300 W/A Brake Tube | ||
| 19 | 257032 | Washer | ||
| 20 | 902280 | Spacer | ||
| 21 | 243330 | Hex Bolt .375-16 x 1 | ||
| 22 | 774145 | M1 Reinforcement Pin | ||
| 23 | 644447 | Brake W/A Lever | ||
| 24 | 265537 | Clevis Yoke | ||
| 25 | 254441 | Nut | ||
| 26 | 780157 | Linkage Rod | ||
| 27 | 261284 | Clevis Pin | ||
| 28 | 422150 | Handle Grip | ||
| 29 | 183894 | Brake Interlock Switch | ||
| 30 | 250258 | Machine Screw | ||
| 31 | 253020 | Whiz Nut | ||
| 32 | 281860 | Woodruff Key | ||
| 33 | 248565 | Lug Bolt | ||
| 34 | 257040 | Washer | ||
| 35 | 243340 | Hex Bolt | ||
| 36 | 260606 | Cotter Ring | ||
| 37 | 254470 | Nut | ||
| 38 | 902283 | Spacer | ||
| 39 | 253044 | Flange Nut |
Electrical Wiring
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 141165 | Electric Zoned Temperature Gauge | ||
| 2 | 141203 | Voltmeter Gauge | ||
| 182007 NLA | Light Bulb | |||
| 3 | 182327 | Oil Indicator Light | ||
| 4 | 182328 | Temperature Indicator Light | ||
| 5 | 182325 | Battery Indicator Light | ||
| 6 | 182326 | Brake Indicator Light | ||
| 7 | 184179 | Light Switch | ||
| 8 | 183925 | Push / Pull Switch | ||
| 9 | 183827 | Kubota Sealed Key Switch | ||
| 10 | 183860 | Lever Switch | ||
| 720160 | Right Steering Switch Mount | |||
| 11 | 183860 | Lever Switch | ||
| 720161 | Left Steering Switch Mount | |||
| 12 | 182253 | Worklamp (Flood) | ||
| 13 | 182005 | Light Bulb for Worklamp | ||
| 14 | 182251 | Snap-Mount Bezel for Worklamp | ||
| 15 | 183871 | Twist-In Seat Switch | ||
| 16 | 184266 | 12V DC Relay With Diode | ||
| 17 | 181722 | Fuse Block | ||
| 184458 | 1 Wire Fuse Clip | |||
| 184460 | 2 Wire Fuse Clip | |||
| 184472 | Double Wire Fuse Clip | |||
| 18 | 181470 | Auto ATC 30 Amp Fuse | ||
| 181460 | Auto ATC 7.5 Amp Fuse | |||
| 181462 | Auto ATC 10 Amp Fuse | |||
| 181465 | Auto ATC 15 Amp Fuse | |||
| 19 | 141551 | Snap-in Hour Meter | ||
| 141122 | Fuel Guage Console Mount | |||
| 20 | 183894 | Brake Interlock Switch | ||
| 21 | 180130 | 12 volt Side Post Wet Battery | ||
| 180131 | 12 Volt Side Post Dry Battery | |||
| 243309 | Hex Bolt | |||
| 603104 | Battery Box Assembly with Strap | |||
| 604785 | Battery Hold Down Strap | |||
| 22 | 180340 | Red 42" Battery Cable | ||
| 425215 | Alternator Terminal Red Boot | |||
| 425219 | Starter Terminal Boot | |||
| 425223 | Battery Terminal Boot | |||
| 23 | 180295 | Black 39" Battery Cable | ||
| 24 | 101510 | Electric Fuel Pump | ||
| 25 | 141224 | Temperature Sende | ||
| 26 | 423690 | PC Board Support Spacer | ||
| 27 | 604880 | Inline Regulator Fuse Holder | ||
| 181475 | Auto ATC 40 Amp Fuse | |||
| 28 | 184084 | Toggle | ||
| 29 | 604431 | Modified Clutch Pigtail | ||
| 30 | 184907 | 2 Terminal Connector | ||
| 141235 | Fuel Sender | |||
| 31 | 606856 | 329/432 Wiring Assembly |
Electrical High Heat Wiring
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 141165 | Electric Zoned Temperature Gauge | ||
| 2 | 141203 | Voltmeter Gauge | ||
| 4 | 182328 | Temperature Light Indicator | ||
| 8 | 183925 | Push/Pull Switch | ||
| 16 | 184266 | 12V DC Relay With Diode |
